Valve Steam Frame Teardown Reveals User-Friendly Design
This report delves into the internal architecture of the Steam Frame virtual reality headset, analyzing its design from a repairability standpoint. Following an initial, somewhat challenging attempt at disassembly by a reviewer, iFixit successfully conducted a thorough teardown, revealing an impressive degree of user-friendliness for internal component access and potential repairs. This detailed examination underscores Valve's ongoing dedication to product serviceability.
The initial challenge faced during an amateur teardown of the Steam Frame unit was primarily due to unfamiliarity with its specific internal layout. The reviewer struggled with identifying proper prying points and screw locations, particularly when attempting to access the mainboard and its attached thermal plate. This led to a cautious approach, preventing deeper exploration to avoid damaging the valuable review unit.
However, iFixit's expert teardown by Shahram Mokhtari provided clear insights into the Steam Frame's thoughtful design. The process of accessing the core module, which houses critical components like the system-on-chip, optics, RAM, memory, and sensors, was found to be relatively straightforward. By releasing three switches located beneath the magnetic face mask, the core module detaches from the strap. Subsequent removal of six Torx screws then grants access to most of the headset's internal workings. The optics, including lenses and screens, are magnetically secured to a rail, facilitating easy removal. Although the push-fit connectors on the optics are glued, iFixit managed to detach them without issue, a step the initial reviewer had avoided due to concerns about potential damage.
iFixit lauded the design, stating that it was exceptionally well-engineered for a device of its complexity, noting only the Bigscreen Beyond offered an even simpler lens stack removal process. With the optics cleared, further access to the headset's interior, including the proximity sensor and the mainboard's metal plate with a copper heatpipe, became easier. Interestingly, even iFixit's expert initially encountered a moment of confusion at this stage, highlighting the intricate nature of the device's layered construction. This mainboard, once thermal paste is cleared, reveals a Snapdragon 8 Gen 3 processor, 16 GB of SK hynix LPDDR5X, and 256 GB of SK hynix NAND storage. Numerous connectors on the board are designed for relatively easy removal using standard tools, although iFixit acknowledged that some tasks might still be beyond the average user's comfort level for repair.

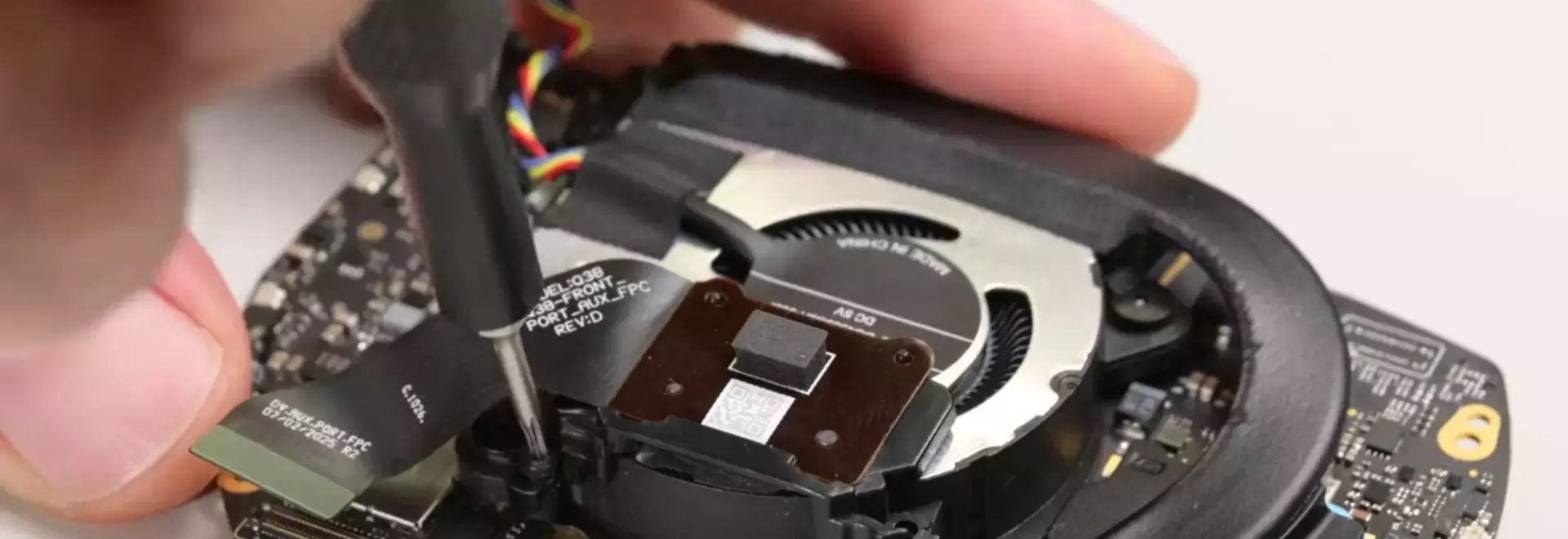

A notable feature discovered upon removing and flipping the mainboard was the presence of six IR emitters, three on each side, which likely contribute to the Steam Frame's accurate and consistent tracking performance. The fan, an active component prone to wear, is the one element iFixit suggested could benefit from even more accessible placement. Furthermore, the controllers for the Steam Frame were also found to incorporate a high density of IR emitters, further explaining the precise tracking capabilities observed during testing. The battery is also designed for relatively easy replacement, secured by a few screws, a press connector, and minimal adhesive, suggesting that third-party battery solutions could be integrated with ease.
Overall, Valve's continued commitment to designing repairable devices is evident in the Steam Frame. Following similar successes with the Steam Controller, Steam Deck, and Steam Machine, the Steam Frame further solidifies Valve's reputation for prioritizing user serviceability. Despite the inherent challenges in creating a compact, standalone VR headset, Valve has largely succeeded in making the Steam Frame user-serviceable, with only minor exceptions. This approach not only benefits consumers by extending product life and reducing electronic waste but also empowers users to maintain and upgrade their devices.
